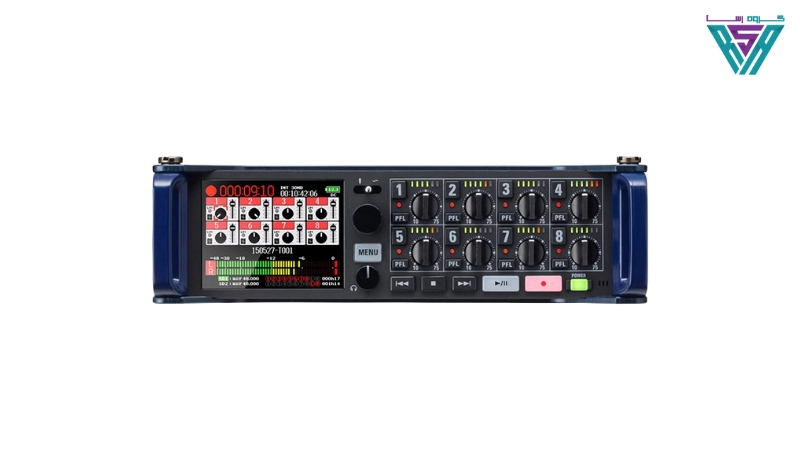

رکوردر مولتی ترک قوی زوم F8

0تومان

THE ZOOM F8
For Filmmaking and Sound Design
Advances in video have made filmmaking accessible to creators everywhere. But the accessibility of professional audio devices has not kept pace. Field recorders, with essential features such as time code, have been unobtainable for most. Until now.

The F8 is made for serious filmmakers and sound designers.
With 8-input/10-track recording, super low-noise preamps, and support for 24-bit/192 kHz audio, the F8 captures the highest-quality audio.

توضیحات

رکوردر حرفه ای زوم سری اف 8 با قابلیت های ويژه
از ويژگي های خاص این رکوردر :
دارابودن پر امپ میکروفون – 8 کانال ضبط صدا – سازگار با کپسول های زوم – دارای اسلات های متنوع
SPECS
RECORDING MEDIA
Dual SD card slot supports:
16 MB–2 GB SD cards
4 GB–32 GB SDHC cards
64 GB–512 GB SDXC cards

INPUTS: 1-8
Connectors:
XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)

INPUTS: XLR (MIC)
Input gain:
+10 – +75 dB

Input impedance:
3.3 kΩ

Maximum input level:
+14 dBu (at 0 dBFS, limiter ON)

Phantom power:
+24/+48V 10 mA maximum for each channel

THD (Total Harmonic Distortion):
0.009% max (1kHz, 22Hz-22kHz BW, Input Gain min, -10dBu input)

INPUTS: TRS (LINE)
Input gain:
−10 – +55 dB

Input impedance:
28 kΩ

Maximum input level:
+24 dBu (at 0 dBFS, limiter ON)

THD (Total Harmonic Distortion):
0.010% max (1kHz, 22Hz-22kHz BW, Input Gain min +10dBu input)

INPUTS: ADDITIONAL INFO
Equivalent input noise:
−127 dBu or less
(A-weighted, +75 dB input gain, 150Ω input)

Frequency characteristics:
10 Hz – 80 kHz +0.5 dB/−1 dB
(192 kHz sampling rate)

A/D dynamic range:
120 dB typ (−60 dBFS input, A-weighted)

Crosstalk:
−90 dB or less
(between adjacent channels, 1 kHz)

MIC IN:
ZOOM mic capsule input
(use disables Inputs 1/2)

SLATE MIC:
Built-in mic for voice memos can freely be assigned to tracks

OUTPUTS: MAIN OUT 1/2
Connectors:
TA3 connectors, balanced output (2: hot)

Output impedance:
150 Ω or less

Reference output level:
−10 dBV (Normal Output Type),
−40 dBV (Mic Output Type), 1 kHz, 600Ω load

Maximum output level:
+10 dBV (Normal Output Type),
−20 dBV (Mic Output Type), 1 kHz, 600Ω load

OUTPUTS: SUB OUT 1/2
Connector:
3.5mm stereo mini unbalanced output jack

Output impedance:
100 Ω or less

Reference output level:
−10 dBV (Normal Output Type),
−40 dBV (Mic Output Type), 1 kHz, 10kΩ load

Maximum output level:
+10 dBV (Normal Output Type),
−20 dBV (Mic Output Type), 1 kHz, 10kΩ load

HEADPHONE
Connector:
1/4″ unbalanced stereo output jack

Output impedance:
15 Ω or less

Maximum output level:
100 mW + 100 mW
(32Ω load)

D/A
D/A dynamic range:
106 dB typical (−60 dBFS input, A-weighted)

RECORDING FORMATS: WHEN WAV SELECTED
Supported formats:
44.1/47.952/48/48.048/88.2/96/192 kHz,
16/24-bit, mono/stereo/2-10 ch poly, BWF and iXML

Maximum simultaneous recording tracks:
10 (8 inputs + stereo mix)
8 (with 192 kHz sampling rate)

RECORDING FORMATS: WHEN MP3 SELECTED
Supported formats:
128/192/320 kbps, 44.1/48 kHz, ID3v1 tags

Maximum simultaneous recording tracks:
2

RECORDING TIME
Using a 32GB card:
30:51:00 (48 kHz/24-bit stereo WAV)
7:42:00 (192 kHz/24-bit stereo WAV)

TIME CODE
Connector:
BNC

Modes:
Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized to timecode)

Frame rates:
23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D

Precision:
±0.2 ppm

Supported input levels:
0.2 – 5.0 Vpp

Input impedance:
4.6 kΩ

Output level:
3.3 Vpp

Output impedance:
50 Ω or less

POWER SUPPLIES
Batteries:
8 AA

AC adapter:
AD-19 DC12V 2A (center plus)

External DC power supply:
HIROSE HR10A-7R-4S 4-pin connector
(1 pin: −, 4 pin: +), 9–16 V

CONTINUOUS RECORDING TIME: WHEN RECORDING 2 CHANNELS AT 48KHZ/16-BIT WITHOUT HEADPHONES
Alkaline batteries:
8.5 hours or more

NiMH (2450mAh):
10 hours or more

Lithium batteries:
12.5 hours or more

CONTINUOUS RECORDING TIME: WHEN RECORDING 8 CHANNELS AT 48KHZ/24-BIT WITH HEADPHONES
Alkaline batteries:
4.5 hours or more

NiMH (2450mAh):
6 hours or more

Lithium batteries:
8.5 hours or more

CONTINUOUS RECORDING TIME: WHEN RECORDING 8 CHANNELS AT 192KHZ/24-BIT WITH HEADPHONES, PHANTOM POWER AND DISPLAY BACKLIGHTING
Alkaline batteries:
1 hour or more

NiMH (2450mAh):
2 hours or more

Lithium batteries:
3 hours or more

DISPLAY
2.4″ full-color LCD:
320×240

USB: MASS STORAGE OPERATION
Class:
USB 2.0 High Speed

USB: MULTITRACK AUDIO INTERFACE OPERATION (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)
Class:
USB 2.0 High Speed

Specifications:
44.1/48/96 kHz, 16/24-bit, 8-in/4-out

USB: STEREO MIX AUDIO INTERFACE OPERATION (NO DRIVER REQUIRED)
Class:
USB 2.0 Full Speed

Specifications:
44.1/48 kHz, 16-bit, 2-in/2-out

Note: iPad audio interface operation supported (Stereo Mix mode only)

EXTERNAL DIMENSIONS
Main unit:
7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)
178.2 mm (W) × 140.3 mm (D) × 54.3 mm (H)

WEIGHT
Main unit only:
2.1 pounds (960 g)
